Basic Info.
Model NO.
OEM
Measuring Media
Gas
Measuring Principle
Thermodynamic
Measurement Object
Open Channel
Certification
JIS, DIN, ANS, GB, ISO
Drawing Format
All Format
Customization
Available
Condition
New
Marketing Type
New Product 2020
Tolerance
+/- 0.1mm
Roughness
Ra 1.6~3.2
Surface Treatment
Customized, Mainly Polishing or Acid Washing
Warranty
Negotiable
Color
Silver
Technics
Casting
Business Type
Manufacturer
Trademark
Junya
Transport Package
Plastic Bag+Carton+Pallet
Specification
Various type of drawing
Origin
China
HS Code
9028209000

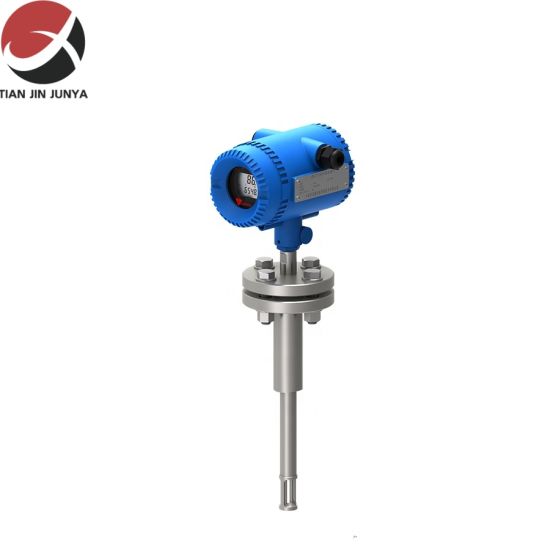

Explosion-proof stainless steel biogas steam boiler used gas mass flowmeter| TGF600- | Insertion type | In-line type | ||
| Media Compatibility | Air, Nitrogen,O2,CO2,Argon,CH4, Natural gas, biogas, and almost all dry and clean air | |||
| Pipe diameter | DN25~2500mm | DN15~300mm | ||
| Flow velocity range | 0.3~30Nm/s or 0.6~60Nm/s or 0.9~90Nm/s or 1.2~120Nm/s | |||
| Accuracy | 1.5% RD+ ±1.5% FS | |||
| Temperature of medium | -40~+150°c, -40~+250°C,-40~+450°C | |||
| Pressure of medium | 1.6MPa/2.5/4.0/6.3 | 4.0Mpa | ||
| Power supply | AC85~265V or DC13.5~42V | |||
| Response time | 1 second | |||
| Output | Frequency + pulse + 4~20Ma as standard | |||
| Communication | RS~485 as standard , 4~20mA@HART as optional | |||
| Date displayed | Mass flow, Volume flow in normal condition | |||
| Total flow , Temperature of medium. | ||||
Designed for air and nitrogen mass flow measurementsInline installing can be installed/removed without stopping the lineCompact design, easy to insertion mounting under high pressureMinimum flow rate down to 0.3m/s, 1:100 super-wide turndown ratioStandard output is pulse and RS485, Hart@4~20mA and 4~20mA is availablePassword protecting function and self-diagnose function with connected user's phone via
*Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.Support
•select output to pulse/4~20mA/frequency•select 4~20mA output parameters•select unit of time/temperature/pressure/flow rate,etc•input range of 4~20mA/pressure/temperature, etc•Remote diagnosis function
Bluetooth software support- bring you a new experience in
Hebei Junya Precision Machinery Co. Ltd is a high-tech enterprise combine designing, tooling developing, casting, machining, surface treatment, inspection, sales and service all together. Founded in 2017, located in Huanghua, Hebei. Junyanow covers an area of more than 5000 square meters.With a massive research & development environment, Junyautilized market-leading technology and introduced various of advanced equipment to ensure the stringent quality in production.Under a powerful management team, the company has growing to the group with more than 100 employees. Product offerings range from Stainless Steel Pipe Fitting, Quick Joint, Ball Valve, Check Valve, to Marine Hardware and Auto Parts. The material are 304, 304L, 316, 316L, SF8M, WCB, 1.4408, etc.-Quality- -Creativity- -Consistency-These words are Junyaslogan, and also philosophy that drives the company to offer the superior service you are looking for.
