Basic Info.
Model NO.
RHN
Application
Water/Oil/Gas
Customized
Customized
Certification
CCC
Roughness
Ra 1.6~3.2
Condition
New
Drawing Format
All Format
Marketing Type
Marketing Type
Pressure
High Pressure
Work Temperature
High Temperature
Technology
Investment Casting
OEM
Customizable
Trademark
Junya
Transport Package
Plastic Bag+Carton+ Pallet
Specification
1/4"*1/8"~4"*3"
Origin
China
HS Code
730729000

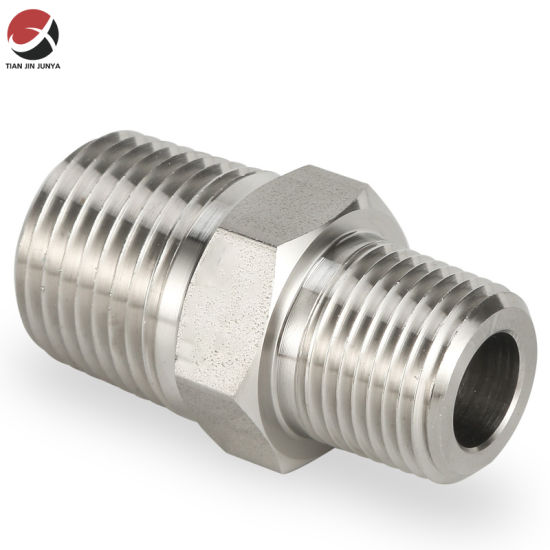

Male Thread Stainless steelHex Reducing Nipple(RHN)Function Description:
Inplumbingandpiping, anippleis a fitting, consisting of a short piece ofpipe, usually provided with amalepipe threadat each end, for connecting two other fittings.
| Name | Male Thread Stainless steelHex Reducing Nipple(RHN) |
| Material | SS304,SS306,CF8,CF8M Stainless Steeletc, |
| Designs | 1.Asperthecustomer'sdrawings |
| 2.Asperthecustomer'ssamples | |
| Surfacetreatment | 1.Polish |
| 2.Pickling | |
| Service | OEMserviceavailable |
| Products | Allkindsofstainlesssteelcasting:include pipe fitting, ball valve, automotiveparts,railroadparts,medicalparts,marineparts,lightingparts,pumpbody,valveparts,architecturalpartsandfurniturepartssoon |
| Advantage | |
| 1.With 5yearsinstainlesssteelcasting; | |
| 2.NearTianjin PortandAirPort;(Convenient Transportation) | |
| 3.Weprovide:OEMstainlesssteellostwaxcastingsandOEM machiningservicesforstainlesssteellostwaxcastings.Wehave:CNCMachining,CNCturning,CNCMilling,3DCMMInspectionandCNCOpticalInspection.Webelieve:ontime,stablequality,justprice,clientconfidentiality. | |
| 4.Withsamplesandorder:Wecanofferdimensionreport,materialcertification. | |
| Inspection: | 1.Dimensionreport |
| 2.Materialcertification | |
| Packing: | Exportcartonandfumigationwoodenpall |
Type | Reducing Hex Nipple | |||
Size Range | 1/4"*1/8" to 4"*3" | |||
Material | ss316 ss304Stainless Steel | |||
Working Temperature | -325ºF~800ºF (-198ºC~426ºC) | |||
Thread Type | NPT | |||
Pressure Rating | 268~757bar | |||
OEM service | Available | |||
Application Scope | Water, Oil, Gas and Alkaline or Acidic Liquid | |||
Usage | Petroleum, Chemical, Power, Electronics, Machinery, Shipbuilding, etc | |||
| Pipe Fitting Reducer Nipple | ||||||
| Specifications | Ф1 | Ф2 | L | H | ||
| 1/4 | 1/8 | 5.5 | 8 | 23.5 | 14.3 | |
| 3/8 | 1/8 | 5.5 | 12 | 25 | 18 | |
| 1/4 | 8 | 12 | 26.5 | 18 | ||
| 1/2 | 1/8 | 5.5 | 16 | 29.5 | 22 | |
| 1/4 | 8 | 16 | 29.5 | 22 | ||
| 3/8 | 12.0 | 21 | 30 | 28 | ||
| 3/4 | 1/8 | 5.5 | 21 | 30 | 28 | |
| 1/4 | 8 | 21 | 31.5 | 28 | ||
| 3/8 | 12 | 21 | 32 | 28 | ||
| 1/2 | 16 | 21 | 34.5 | 28 | ||
| 1 | 3/8 | 12 | 26.7 | 34.5 | 34.5 | |
| 1/2 | 16 | 26.7 | 37 | 34.5 | ||
| 3/4 | 21 | 26.7 | 38.5 | 34.5 | ||
| 11/4 | 1/2 | 16 | 35.2 | 40.5 | 42.8 | |
| 3/4 | 21.0 | 35.2 | 42 | 42.8 | ||
| 1 | 26.7 | 35.2 | 44 | 42.8 | ||
| 11/2 | 3/4 | 21 | 41.3 | 43.5 | 49 | |
| 1 | 26.7 | 41.3 | 45.5 | 49 | ||
| 11/4 | 35.2 | 41.3 | 47.5 | 49 | ||
| 2 | 1 | 16 | 52.3 | 46 | 61.2 | |
| 3/4 | 21 | 52.3 | 47.5 | 61.2 | ||
| 1 | 26.7 | 52.3 | 49.5 | 61.2 | ||
| 11/4 | 35.2 | 52.3 | 51.5 | 61.2 | ||
| 11/2 | 41.3 | 52.3 | 52.5 | 61.2 | ||
| 21/2 | 1 | 26.7 | 66.6 | 53.5 | 76.5 | |
| 11/4 | 35.2 | 66.6 | 55.5 | 76.5 | ||
| 11/2 | 41.3 | 66.6 | 56.5 | 76.5 | ||
| 2 | 52.3 | 66.6 | 60 | 76.5 | ||
| 3 | 11/2 | 41.3 | 78.5 | 61 | 89.4 | |
| 2 | 52.3 | 78.5 | 64.5 | 89.4 | ||
| 21/2 | 66.6 | 78.5 | 68 | 89.4 | ||
| 4 | 2 | 52.3 | 102.5 | 67.5 | 115.4 | |
| 21/2 | 66.6 | 102.5 | 71 | 115.4 | ||
| 3 | 78.5 | 102.5 | 75 | 115.4 | ||
Quality Control
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)2) Checking the details before the production line operated3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)4) Checking the goods after they are finished---- Final quality control(FQC)5) Checking the goods after they are finished-----Outgoing quality control(OQC)
Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.
