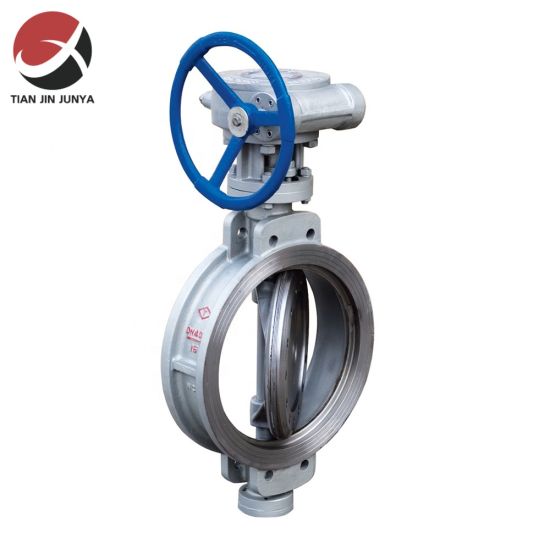

Sanitary Stainless Steel 304/316 2'-48'' Double Eccentric Butterfly Valve with Manuel Pull/Spin Wheel HandleAbutterfly valveis avalvethat isolates or regulates theflowof a fluid. The closing mechanism is adiskthat rotates.A butterfly valve is from a family of valves calledquarter-turn valves. In operation, the valve is fully open or closed when the disc is rotated a quarter turn. The "butterfly" is ametaldisc mounted on a rod. When the valve is closed, the disc is turned so that it completely blocks off the passageway. When the valve is fully open, the disc is rotated a quarter turn so that it allows an almost unrestricted passage of the fluid. The valve may also be opened incrementally tothrottleflow.
There are different kinds of butterfly valves, each adapted for different pressures and different usage. The zero-offset butterfly valve, which uses the flexibility ofrubber, has the lowest pressure rating. The high-performance double offset butterfly valve, used in slightly higher-pressure systems, is offset from the centre line of the disc seat and body seal (offset one), and the centre line of the bore (offset two). This creates a cam action during operation to lift the seat out of the seal resulting in less friction than is created in the zero offset design and decreases its tendency to wear. The valve best suited for high-pressure systems is the triple offset butterfly valve. In this valve the disc seat contact axis is offset, which acts to virtually eliminate sliding contact between disc and seat. In the case of triple offset valves the seat is made of metal so that it can be machined such as to achieve a bubble tight shut-off when in contact with the disc.
| Technology : | Investment Casting |
| Main Materials: | SS304, SS316,CF8M,CF8 |
| Working pressure: | PN16-PN63, 150LB-900LB |
| Applicable temperature: | -20~210 degree centigrade |
| Name | OEM stainless steel investment casting parts Material |
| Material | 304,306 ,2205stainlesssteeletc, |
| Designs | 1.Asperthecustomer'sdrawings |
| 2.Asperthecustomer'ssamples | |
| Surfacetreatment | 1. mirror polish |
| 2. passivation | |
| Service | OEMserviceavailable |
| Products | Allkindsofstainlesssteelcasting:include pipe fitting, ball valve, automotiveparts,railroadparts,medicalparts,marineparts,lightingparts,pumpbody,valveparts,architecturalpartsandfurniturepartssoon |
| Advantage | 1. More than 10 yearsexperience instainlesssteelcasting; |
| 2. NearTianjin PortandTianjin Airport; | |
| 3. Weprovide:OEMstainlesssteellostwaxcastingsandOEM machiningservicesforstainlesssteellostwaxcastings. Wehave:CNCMachining,CNCturning,CNCMilling,3DCMM InspectionandCNCOpticalInspection. Webelieve:ontime,stablequality,justprice,clientconfidentiality. | |
| 4. Withsamplesandorder:Wecanofferdimensionreport,materialcertification. | |
| Inspection: | 1.Dimensionreport |
| 2.Materialcertification | |
| Packing: | Exportcartonandfumigationwoodenpall |
*Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.Hebei Junya Precision Machinery Co. Ltd is a high-tech enterprise combine designing, tooling developing, casting, machining, surface treatment, inspection, sales and service all together. Founded in 2017, located in Huanghua, Hebei. Junyanow covers an area of more than 5000 square meters.With a massive research & development environment, Junyautilized market-leading technology and introduced various of advanced equipment to ensure the stringent quality in production.Under a powerful management team, the company has growing to the group with more than 100 employees. Product offerings range from Stainless Steel Pipe Fitting, Quick Joint, Ball Valve, Check Valve, to Marine Hardware and Auto Parts. The material are 304, 304L, 316, 316L, SF8M, WCB, 1.4408, etc.-Quality- -Creativity- -Consistency-These words are Junyaslogan, and also philosophy that drives the company to offer the superior service you are looking for.
