Basic Info.
Model NO.
JY
Brand
Junya
Technology
Investment Casting
Function
Steadiness and Protection
Marketing Type
New Product 2020
Surface
Polish/ Pickling
Trademark
Junya
Transport Package
Packing
Specification
25mm~400mm
Origin
China

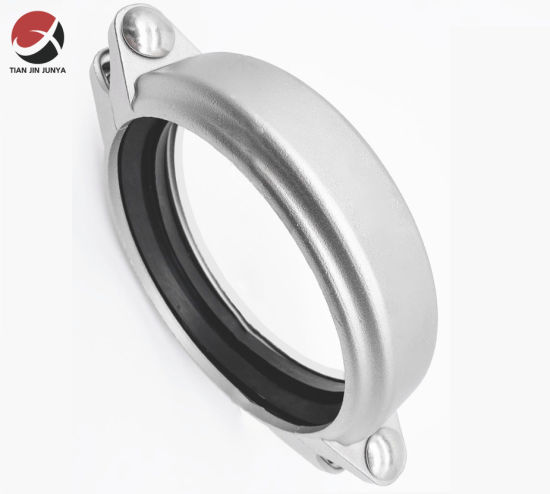

OEM Investment Casting Stainless Steel CF8/CF8m Grooved Clamp CouplingFunction Description:
Suitable for water, oil, gas and other pipeline connection, rubber sealing ring after being squeezed sealing effect, in the compression part of the stainless steel pipe and stainless steel pipe shrinkage deformation at the same time (profile form hexagonal shape), play the role of positioning and fixing, so as to effectively achieve the connection of stainless steel pipe.Application:| Applicable Temperature: | -34 °C - +110 °C |
| Main Materials: | SS304/SS316/EPDM |
| Pressure Rating: | 350Psi, 600Psi,1200Psi;2.5Mpa,4.2Mpa, 8.3Mpa |
| Size Range: | DN25-DN400 |
| Name | Stainless SteelGrooved Clamp Coupling |
| Material | SS304,SS306,CF8,CF8M Stainless Steel/ EPDM etc, |
| Designs | 1.Asperthecustomer'sdrawings |
| 2.Asperthecustomer'ssamples | |
| Surfacetreatment | 1.Polish |
| 2.Pickling | |
| Service | OEMserviceavailable |
| Products | Allkindsofstainlesssteelcasting:include pipe fitting, ball valve, automotiveparts,railroadparts,medicalparts,marineparts,lightingparts,pumpbody,valveparts,architecturalpartsandfurniturepartssoon |
| Advantage | |
| 1.With 5yearsinstainlesssteelcasting; | |
| 2.NearTianjin PortandAirPort;(Convenient Transportation) | |
| 3.Weprovide:OEMstainlesssteellostwaxcastingsandOEM machiningservicesforstainlesssteellostwaxcastings.Wehave:CNCMachining,CNCturning,CNCMilling,3DCMMInspectionandCNCOpticalInspection.Webelieve:ontime,stablequality,justprice,clientconfidentiality. | |
| 4.Withsamplesandorder:Wecanofferdimensionreport,materialcertification. | |
| Inspection: | 1.Dimensionreport |
| 2.Materialcertification | |
| Packing: | Exportcartonandfumigationwoodenpall |
Quality Control
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)2) Checking the details before the production line operated3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)4) Checking the goods after they are finished---- Final quality control(FQC)5) Checking the goods after they are finished-----Outgoing quality control(OQC)
Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.
| Pipe Fitting Clamp | ||||||
| Nominal Diameter(mm) | Outer Diameter(mm) | Nominal pressure( Mpa/psi) | Bolt Size | Maximum Size | ||
| Ф | L | H | ||||
| 25 | 33.7 | 2.5/500 | 2-M10X45 | 57 | 96 | 44 |
| 32 | 42.4 | 67 | 104 | 44 | ||
| 40 | 48.3 | 72 | 112 | 44 | ||
| 50 | 57 | 2-M10X55 | 83 | 122 | 45 | |
| 50 | 60.3 | 85 | 125 | 45 | ||
| 65 | 73 | 95 | 132 | 45 | ||
| 65 | 76.1 | 100 | 134 | 45 | ||
| 80 | 88.9 | 2-M10X60 | 113 | 160 | 45 | |
| 100 | 108 | 2-M10X65 | 140 | 186 | 47 | |
| 100 | 114.3 | 147.2 | 193 | 47 | ||
| 125 | 133 | 2.5/400 | 2-M12X85 | 164 | 216 | 47 |
| 125 | 139.7 | 170 | 222 | 47 | ||
| 150 | 159 | 194 | 246 | 47 | ||
| 150 | 165.1 | 203 | 248 | 47 | ||
| 150 | 168.3 | 205 | 254 | 47 | ||
| 200 | 219.1 | 2.5/300 | 2-M16X85 | 257 | 330 | 60 |
| 250 | 273 | 2-M22X130 | 328 | 420 | 64 | |
| 300 | 323.9 | 380 | 454 | 64 | ||
| 350 | 355.6 | 3-M22X130 | 420 | 465 | 73 | |
| 350 | 377 | 445 | 480 | 77 | ||
| 400 | 406.4 | 488 | 541.5 | 77 | ||
Hebei JunyaPrecision Machinery Co. Ltd is a high-tech enterprise combine designing, tooling developing, casting, machining, surface treatment, inspection, sales and service all together. Founded in 2017, located inHuanghua, Hebei, Junyanow covers an area of more than 5000 square meters.With a massive research & development environment, Junyautilized market-leading technology and introduced various of advanced equipment to ensure the stringent quality in production.Under a powerful management team, the company has growing to the group with more than 100 employees. Product offerings range from Stainless Steel Pipe Fitting, Quick Joint, Ball Valve, Check Valve, to Marine Hardware and Auto Parts. The material are 304, 304L, 316, 316L, SF8M, WCB, 1.4408, etc.-Quality- -Creativity- -Consistency-These words are JYslogan, and also philosophy that drives the company to offer the superior service you are looking for…FAQ:Q1: How long is your delivery time?A:Delivery time is depends on the total quantity of order. Normally, sample can be delivered within 15 days.Q2: Do you provide samples? Is it free or extra?A:Yes, we could offer sample for free, and we can pay for the model as well, but the clients has to pay for the shipping cost.Q3: What is the MOQ of your products?A:It depends on the category or order.Q4: Where is your factory?A:Our factory located in Hebei province, close to Tianjin seaport.Q5:What does your company need to submit a quotation?A:Drawing or Sample, together with relevant information, such as Quantity, Weight, Material.Q6:What we do not have a drawing?A:We can duplicate your sample and make drawing for your confirmation.
