Basic Info.
Model NO.
+B
Thread
NPT, Bsp, BSPT, DIN2999 ISO7/1
Samples
Available
Head Type
Round
Thread Standard
NPT, Bsp, BSPT, DIN, etc.
Technology
Investment Casting
OEM
Customizable
Manufacturer
OEM/ODM/Brand
Payment
T/T, T/C
Trademark
Junya
Transport Package
Plastic Bag+Carton+ Pallet
Specification
1/8"~4"
Origin
China
HS Code
73072900

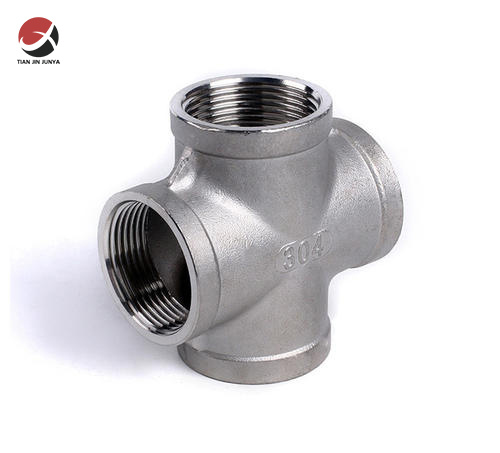

Stainless Steel Pipe Fitting CrossFunction Description:
The threaded four-way is a kind of industrial pipe fittings whose main function is to shunt the medium throughApplication:
| Technology : | Investment Casting |
| Main Materials: | SS304, SS316,CF8M,CF8 |
| Working pressure: | PN10-PN40, 150LB-600LB |
| Applicable temperature: | -20~210 degree centigrade |
| Name | Stainless Steel Pipe Fitting Cross |
| Material | SS304,SS306,CF8,CF8M Stainless Steel etc, |
| Designs | 1.Asperthecustomer'sdrawings |
| 2.Asperthecustomer'ssamples | |
| Surfacetreatment | 1.Polish |
| 2.Pickling | |
| Service | OEMserviceavailable |
| Products | Allkindsofstainlesssteelcasting:include pipe fitting, ball valve, automotiveparts,railroadparts,medicalparts,marineparts,lightingparts,pumpbody,valveparts,architecturalpartsandfurniturepartssoon |
| Advantage | |
| 1.With 5yearsinstainlesssteelcasting; | |
| 2.NearTianjin PortandAirPort;(Convenient Transportation) | |
| 3.Weprovide:OEMstainlesssteellostwaxcastingsandOEM machiningservicesforstainlesssteellostwaxcastings.Wehave:CNCMachining,CNCturning,CNCMilling,3DCMMInspectionandCNCOpticalInspection.Webelieve:ontime,stablequality,justprice,clientconfidentiality. | |
| 4.Withsamplesandorder:Wecanofferdimensionreport,materialcertification. | |
| Inspection: | 1.Dimensionreport |
| 2.Materialcertification | |
| Packing: | Exportcartonandfumigationwoodenpall |
| Pipe Fitting Cross | |||||
| Specifications | Ф1 | L | |||
| 1/8" | 13 | 14 | |||
| 1/4" | 16 | 17 | |||
| 3/8" | 19 | 19 | |||
| 1/2" | 25 | 24.5 | |||
| 3/4" | 30 | 28 | |||
| 1" | 38.2 | 32 | |||
| 11/4" | 45.2 | 38 | |||
| 11/2" | 52 | 42.5 | |||
| 2" | 63.5 | 52 | |||
| 21/2" | 80.2 | 62.5 | |||
| 3" | 93.3 | 72 | |||
| 4" | 120.5 | 88 | |||
Quality Control
1) Checking the raw material after they reach our factory------- Incoming quality control ( IQC)2) Checking the details before the production line operated3) Have full inspection and routing inspection during mass production---In process quality control(IPQC)4) Checking the goods after they are finished---- Final quality control(FQC)5) Checking the goods after they are finished-----Outgoing quality control(OQC)
Our wax casting product processed by 79 steps with high standard and 100% inspection. Along with the power of our advanced machine, quality is something you do not need to worry about.
Hebei JunyaPrecision Machinery Co. Ltd is a high-tech enterprise combine designing, tooling developing, casting, machining, surface treatment, inspection, sales and service all together. Founded in 2017, located inHuanghua, Hebei, Junyanow covers an area of more than 5000 square meters.With a massive research & development environment, Junyautilized market-leading technology and introduced various of advanced equipment to ensure the stringent quality in production.Under a powerful management team, the company has growing to the group with more than 100 employees. Product offerings range from Stainless Steel Pipe Fitting, Quick Joint, Ball Valve, Check Valve, to Marine Hardware and Auto Parts. The material are 304, 304L, 316, 316L, SF8M, WCB, 1.4408, etc.-Quality- -Creativity- -Consistency-These words are JYslogan, and also philosophy that drives the company to offer the superior service you are looking for…FAQ:
Q1: How long is your delivery time?A:Delivery time is depends on the total quantity of order. Normally, sample can be delivered within 15 days.Q2: Do you provide samples? Is it free or extra?A:Yes, we could offer sample for free, and we can pay for the model as well, but the clients has to pay for the shipping cost.Q3: What is the MOQ of your products?A:It depends on the category or order.Q4: Where is your factory?A:Our factory located in Hebei province, close to Tianjin seaport.Q5:What does your company need to submit a quotation?A:Drawing or Sample, together with relevant information, such as Quantity, Weight, Material.Q6:What we do not have a drawing?A:We can duplicate your sample and make drawing for your confirmation.
